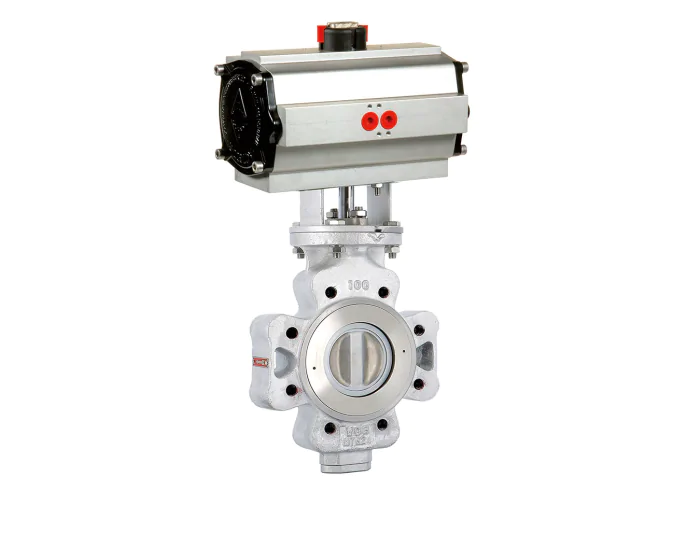

The 1117 series carbon steel butterfly valve, equipped with either a spring return or double acting ACTREG pneumatic actuator, features a CF8M disc, up to DN300. It is a lug type, double offset.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 20 |
| Operating angle (°) | 90 |
| Shaft/stem matérial | Stainless steel 630 (17-4 PH) |
| Lockable | No |
| ATEX compatible | Yes |
| DN | DN50 - 2'' |
| Face to Face (mm) | 78.0 |
| Body material | Carbon steel A216 WCB (1.0619) |
| ATEX protection mode | Ex c |
| Number of ways | 2 |
| Disc material | Stainless steel CF8M |
| Position | Normally closed |
| PS (bar) | 20 |
| Connections | Flanged #150 PN20 |
| Seats | PTFE-Graphite |
| Surface temperature | TX |
| Pneumatic actuator type | Double acting |
| Butterfly valve design | Double offset |
| Wafer/lug | Lug |
| Warranty period | 2 years |
| CE | Risk category III |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Double offset DN50 - 2'' Double acting | 260870015101 | S1001452 |
€636.49
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Double offset DN50 - 2'' Spring return | 260870016102 | S1001453 |
€712.86
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Double offset DN65 - 2''1/2 Double acting | 260871015101 | S1001454 |
€636.49
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Double offset DN65 - 2''1/2 Spring return | 260871016102 | S1001455 |
€712.86
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Double offset DN80 - 3'' Double acting | 260872015102 | S1001456 |
€836.26
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Double offset DN80 - 3'' Spring return | 260872016103 | S1001457 |
€904.71
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Double offset DN100 - 4'' Double acting | 260873015102 | S1001458 |
€858.29
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Double offset DN100 - 4'' Spring return | 260873016104 | S1001459 |
€980.89
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Double offset DN125 - 5'' Double acting | 260874015104 | S1001460 |
€1,162.40
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Double offset DN125 - 5'' Spring return | 260874016105 | S1001461 |
€1,313.21
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Double offset DN150 - 6'' Double acting | 260875015105 | S1001462 |
€1,420.06
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Double offset DN150 - 6'' Spring return | 260875016106 | S1001463 |
€1,618.96
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Double offset DN200 - 8'' Double acting | 260876015105 | S1001464 |
€2,105.70
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Double offset DN200 - 8'' Spring return | 260876016106 | S1001465 |
€2,304.53
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Double offset Double acting DN250 - 10'' | 260877015106 | S1001466 |
€3,057.37
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Double offset Double acting DN300 - 12'' | 260878015106 | S1001467 |
€3,661.39
(excl. btw)
|
add to cart |
